TSA Electric Pile Wind Hoist - a compact, Australian-made 500 kg venue hoist, single-phase 230V, built and tested to AS1418.2:1997
Lift it. Fly it. On the power you have.
The TSA Electric Pile Wind Hoist flies your bars, scenery and soft goods on single-phase power - compact, variable speed, and built in Australia to live in the building for years. 500 kg, single-phase.
- 500 kg Working load limit
- Single phase 230V, no 3-phase install
- AS1418.2 Built and tested to
One hoist.
One job done right.
The pile hoist packs the drive, control and safety into one compact unit that clips to the wall and stays there. Here's what it lifts and how far.
Running more than one hoist, or not sure which capacity your plot needs? and we will plan the system with you.
Pile hoist specifications, in one table.
| WLL | 500 kg |
|---|---|
| Body size | 852 x 390 x 433 mm |
| Brake and safety | Brake arrest 200% of capacity; gearbox efficiency under 50% at low speed (cannot free-fall) |
Steel rope, piled
on a drum. Not chain.

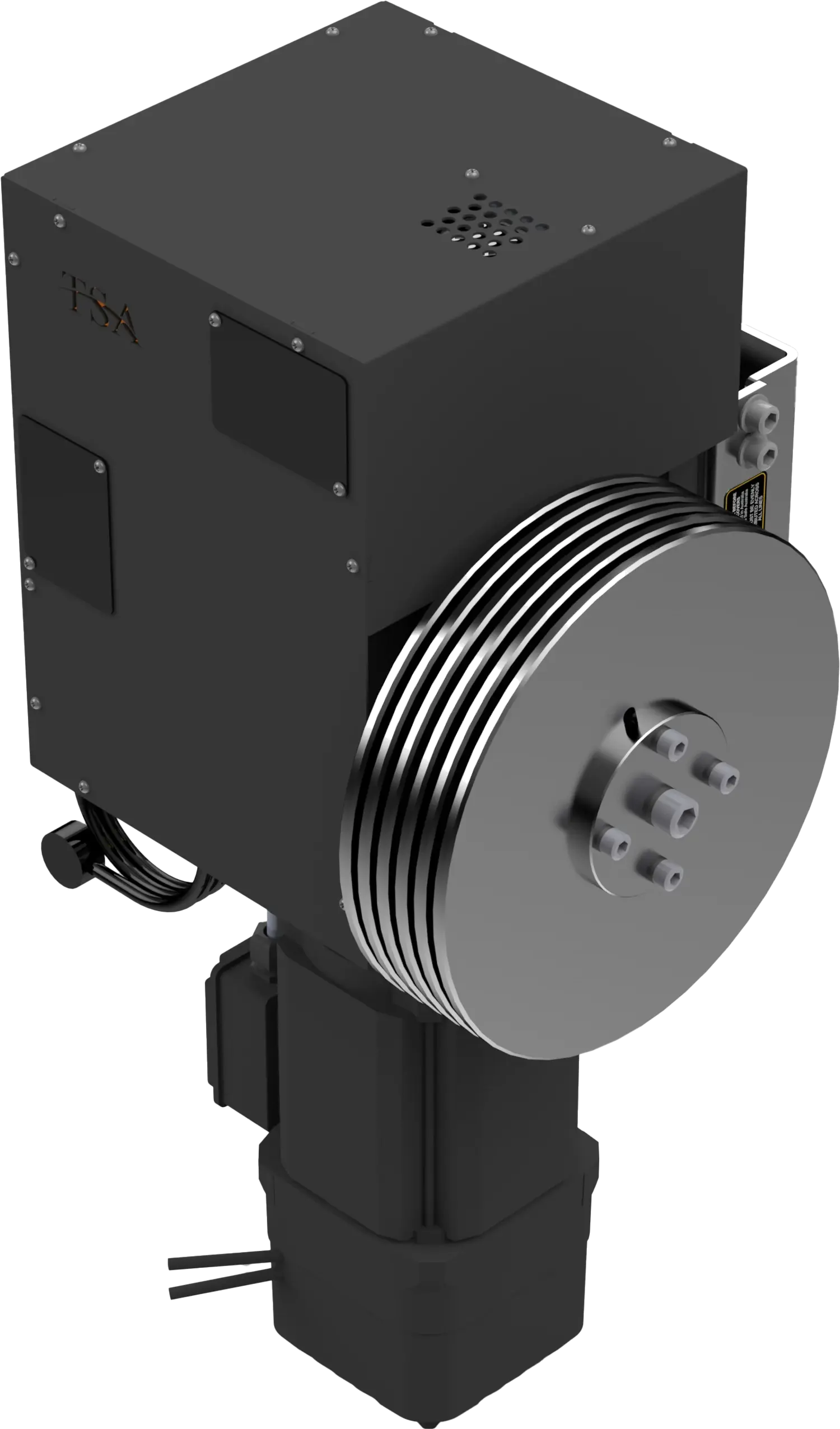

A pile wind hoist lifts on a steel wire rope that piles onto a single flanged drum - no chain - and the rope feeds straight up the lines. The TSA Electric Pile Wind Hoist packs that drum, the motor, the gearbox and the control into one compact unit that fixes to the wall and stays there.
It is built in Australia for venues, not adapted from an industrial hoist. The 500 kg unit covers flown scenery and heavier bars, on single-phase 230V with soft start and stop - it ramps up to a top speed of around 8 m/min and decelerates to a soft stop, quiet enough for a live room. It is one part of the full Lifting & Rigging range.
Four jobs, one drum.
Schools & halls
Single-phase lifting for bars, borders and soft goods that staff can run safely.
Performing-arts venues
Up to 500 kg of flown scenery and house masking, run from a simple pendant.
Worship & community
Quiet, compact lifting for banners, lighting and staging, on the power the room already has.
Civic & council venues
Fixed lifting for civic halls and auditoriums - configured by our installers, run by venue staff.
The venue workhorse.
One proven drum.
The pile hoist runs a single-phase drive with soft start and stop. Here is the full spec.
Every value here is from the current TSA Pile Hoist data sheet. It is designed, tested and built as a serial hoist to AS1418.2:1997, with the gearbox running below 50% efficiency at low speed so it cannot free-fall and a motor brake rated to arrest 200% of capacity.
The venue workhorse.
The heavier unit for flown scenery and loaded bars. A 5 mm rope on 3 to 7 lines lifts 500 kg over up to 14 m, on a 1.5 kW single-phase motor with soft start and stop. The rope piles onto a single flanged drum for a clean, repeatable wind.
Planning more than one hoist on a network? Tell us the loads, the travel and the venue, and we will spec it. Pile hoists sit alongside the chain hoist range and the full rigging line.
Hoists that
stay in service.
Designed, built and supported in Australia - the same team that specs the hoist installs it and services it, year after year.
See all projects
36 hoists, one ceiling, one desk.
A 36-axis hoist array and five-chord box truss - the turnkey overhead rigging behind the Great Hall.
Read the project
4,000 shows. Zero missed cues.
Seven-plus years servicing five performer flying rigs and the full stage automation system.
Read the project
Bars a hall can actually run.
Single-phase pile hoists and control a teacher or casual crew can run safely, term after term.
Explore schoolsQuestions
about pile hoists.
If your question isn't here, call us or send your venue detail - we will come back with the right answer for your room.
Call 1300 439 872 →Tell us about
your venue.
Send what you need to move, how far, and the room it lives in. We will spec the right pile hoist, supply it, and support it - here and Australia wide.
- We talk. What you need to move, how far, and the room.
- We spec. The right pile hoist for the job.
- We supply. Supplied and supported, here and Australia wide.
