Rigging Hardware - Reutlinger cable holders, 150mm nylon pulley blocks and sheaves, beam and girder clamps, batten clamps and pipe hangers, and fly-system hardware, specified, supplied, installed and certified Australia wide by TSA
Cable holders, pulleys and clamps. Rated to rig.
The structural metalwork that fixes a rig to the building and routes the lines - cable holders, pulley blocks, beam and batten clamps, and fly-system hardware. Specified, certified and supported, not pulled from a generic industrial catalogue.
Five families.
One load path.
The metalwork that carries the load - grouped into five families. Start from the job in front of you, then pick the rating, size or fitting your rig calls for.
Rigging hardware specifications, in one table.
| Cable holders | Reutlinger Type 50, 66, 80; DGUV (SF10) 60-240 kg; TUV (SF5) 120-480 kg; 4 to 8 mm rope |
|---|---|
| Pulley blocks | 150 mm, 6 line: loft 250 kg, header 500 kg; 230 mm counterweight head block 750 kg |
| Pulley certification | AS 1418.2-1997 and AS 3990-1993, third party certified |
| Beam fit (pulleys) | UB 200-460, UC 150-200 |
| Girder clamps | TSA Black 2T (75-230 mm) and 3T (80-320 mm), 4:1; Beaver 1T to 10T |
| Batten clamps | 250 kg all configurations; 48 mm OD and 75 x 50 RHS; M12; matt black |
The metalwork
that carries the load.
Rigging hardware is the structural attachment and suspension gear that holds the rig up: it fixes the load to the building and grid and routes the lines. TSA specifies five families to theatrical and venue standard, not from a generic industrial catalogue.
- Cable holders. Reutlinger, self-locking.
- Pulley blocks. Nylon sheaves, third-party certified to AS 1418.2.
- Beam and girder clamps. No-drill fixing to structural steel.
- Batten clamps. In-house, matt black.
- Fly-system hardware. Irons, plates, lugs, turnbuckle.
Wear-and-replace consumables sit alongside in the Lifting & Rigging range.
Four jobs, one store.
Permanent venue rigs
Cable holders, certified pulley blocks and beam clamps that live in the grid and pass inspection.
Touring & load-ins
Beam clamps, batten clamps and fly hardware that travel light and rig fast.
Stadiums & events
Girder clamps to 10 t and certified pulley blocks for big rigs and ground support.
Film, TV & studios
Quiet pulley blocks, black clamps and fly hardware for camera and studio grids.
Pick the family,
not the compromise.
Five hardware families, each rated, certified and finished for stage use. Black is the venue default. Pick by the job on the rig.
Grip the rope, lock the load.
Self-locking: grips 4 to 8 mm steel wire rope and holds under load. Made in Germany; not for dynamic scenic movement or loads over people.
Quiet sheaves, no-drill mount.
Near-silent Nylatron nylon sheaves on sealed bearings, third-party certified to AS 1418.2 and AS 3990. The 150 mm 6-line loft block carries 250 kg, the head block 500 kg, the 230 mm counterweight head block 750 kg. A no-drill bracket means no modification to the flange.
Hang it off the steel.
No-drill attachment to structural steel, in two ranges: TSA Black in satin black for venue specs, and colour-coded Beaver for quick on-site checks. Both third-party certified. Send the beam and the load and we will spec the clamp.
Built in-house for the bar.
Fabricated in-house, rated 250 kg across five configurations: standard pipe hanger, 48 OD single and double, 75 x 50 RHS, and the RHS-and-OD combination. Matt black, covering every standard Australian batten profile from one supplier.
The fittings that fly the scene.
Flying irons, boss plates, clew plates, rigging lugs and clamp-on weights, plus the Grade P jaw-jaw turnbuckle for fine scenic adjustment. Specified to the job: send the rig and we will spec, supply and certify it.
Not sure which fitting your rig needs? Send the job and we will spec and supply it, certified, from Australian stock. Hardware pairs with the EXE Rise chain hoists, rigging consumables and LITEC truss across the rigging line.
Five hardware families, each rated, certified and finished for stage use.

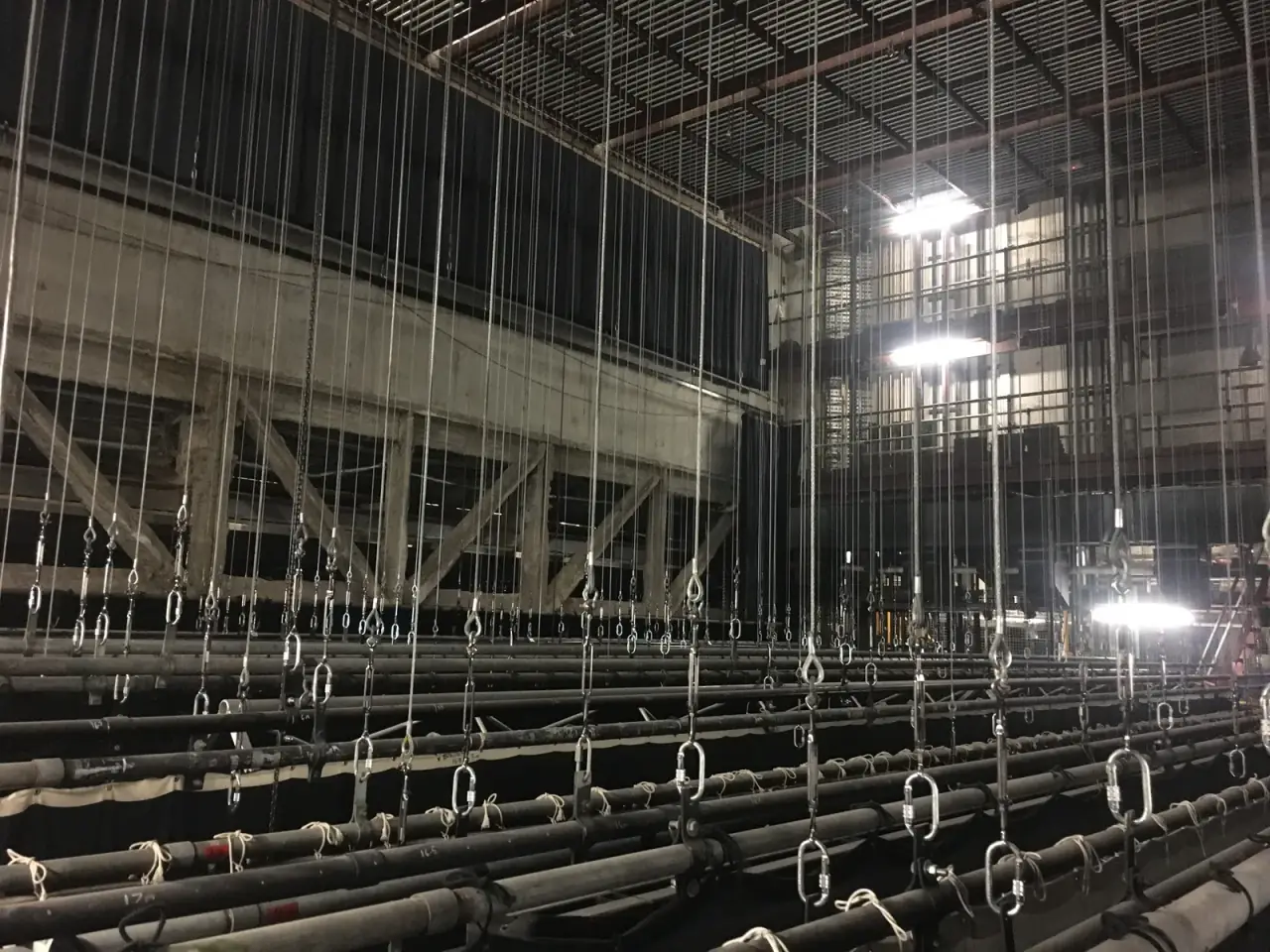

In the fly tower Wire ropes, shackles and pipe battens over a stage.The work
above the stage.
From spec to sign-off, on real jobs. We supply the rated gear from Australian stock and support it on site.
View all projects
36 hoists, one ceiling.
A 36-axis EXE Rise hoist array on five-chord box truss - hung on certified pulley blocks, beam clamps and rated fittings, run from a Raynok desk.
View the project
4,000 shows, zero missed cues.
Seven-plus years on five performer flying rigs and the full stage automation system - 4,000-plus shows, zero missed cues.
View the projectThe range, in your inbox.

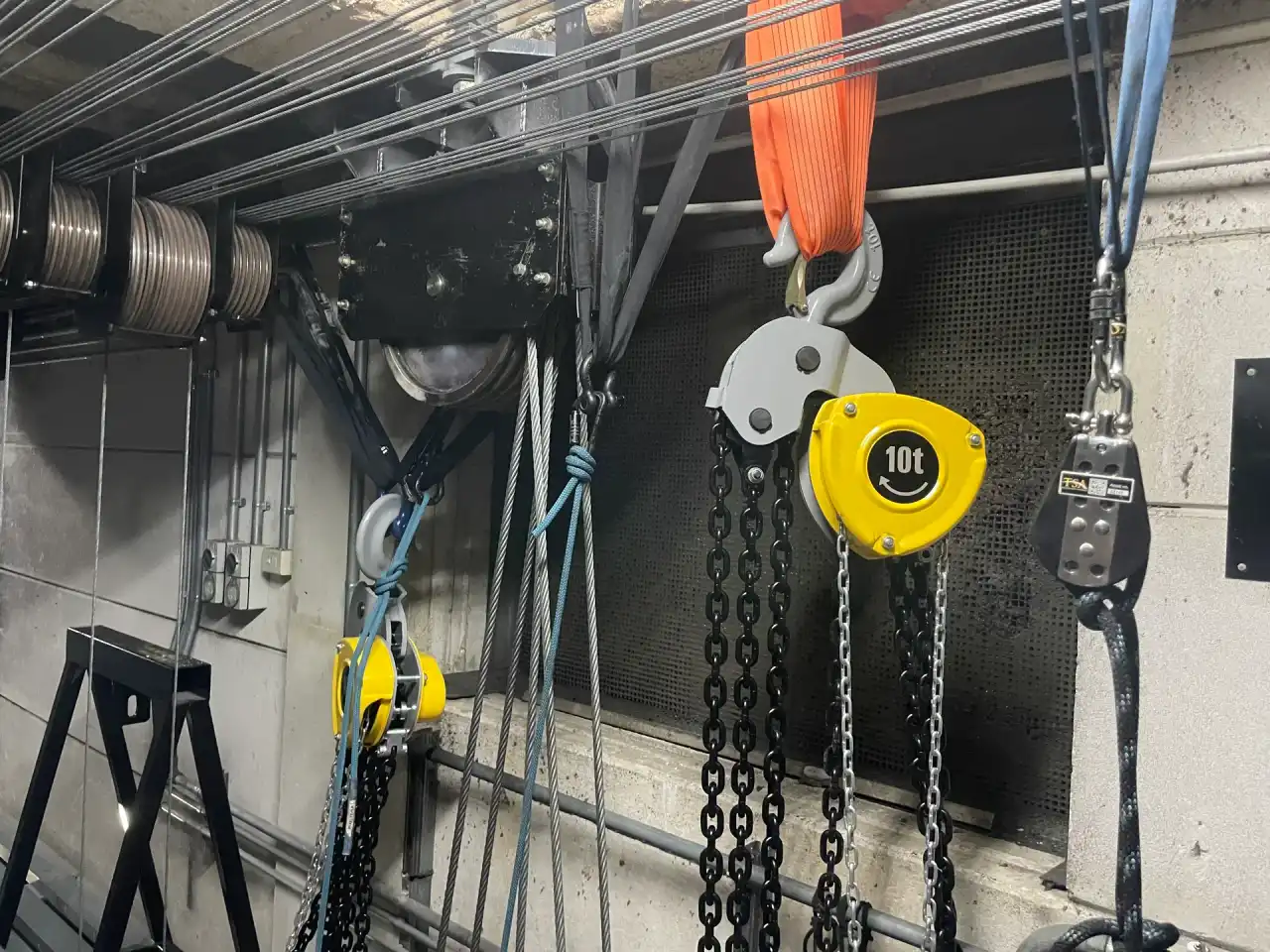

Slings, shackles and wire rope where the load is
Round slings, shackles and wire rope rigged in fly towers, on stages and across event floors.
Questions
about rigging hardware.
If your question isn't here, send the job - we'll come back with the right hardware and the specs.
Call 1300 439 872 →- Reutlinger self-locking cable holders
- 150 mm nylon pulley blocks and sheaves
- Beam and girder clamps
- Batten clamps and pipe hangers
- Fly-system hardware
- DGUV safety factor 10: 60 to 240 kg, the entertainment-industry rating
- TUV safety factor 5: 120 to 480 kg
- 150 mm 6-line loft block: 250 kg
- Head block: 500 kg
- 230 mm counterweight head block: 750 kg
- TSA Black: 2 t and 3 t, satin black for venue specifications
- Beaver: 1 t to 10 t, colour-coded by working load for quick on-site verification
Tell us what
your rig needs.
Send the job - the load, the beam, the fixing point - and we will spec the right cable holders, pulleys, clamps and fly hardware, supply them certified from Australian stock, and support them in the venue and on the road.
- We talk. The load, the beam and the fixing point.
- We spec. The right cable holders, pulleys, clamps and fly hardware.
- We supply. Certified, from Australian stock, supported in the venue and on the road.
